Product Description
DC EV Charger Station
Feature:
1.DC
2.7KW/15KW/20KW/30KW/40KW
3.CCS2/CHAdeMO/GB/T Support
4.CE ,RoHS ,UL Listed
5.IP55

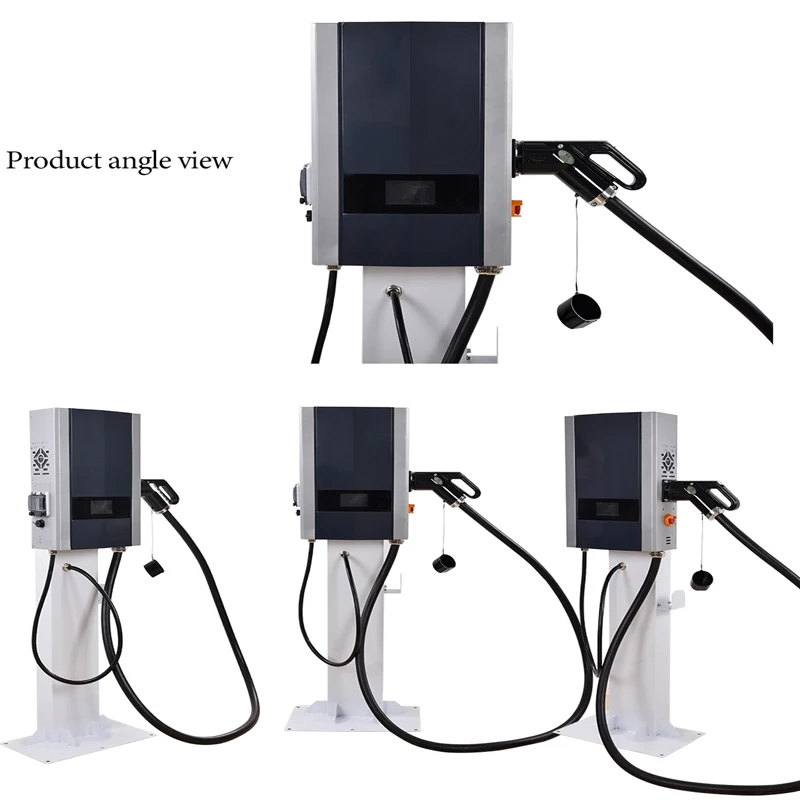

Detail Show
7kw/15KW/20KW/30KW Home use CCS1 CCS2 CHAdeMO Connector Floor Mounted DC EV Charger station
Description
Product parameters
| Model | QM07 | QM15 | QM20 | QM30 | QM40 |
| Output Power | 7KW | 15KW | 20KW | 30KW | 40KW |
| Input Voltage | 90-265V | 260-475V/480V 3 Phase Optional | |||
| Input Connection | L+N+PE | 3P+N+PE | |||
| Input Current | 32A | 25A | 32A | 45A | 64A |
| Output Voltage | 200-750V (200-1000V Optional) | ||||
| Output Current | 20A | 25A/37A | 33A/60A | 50A/100A | 133A |
| Frequency | 50/60Hz | ||||
| Power Factor | ＞0.99@rated voltage | ||||
| Work Efficiency | 95% | ||||

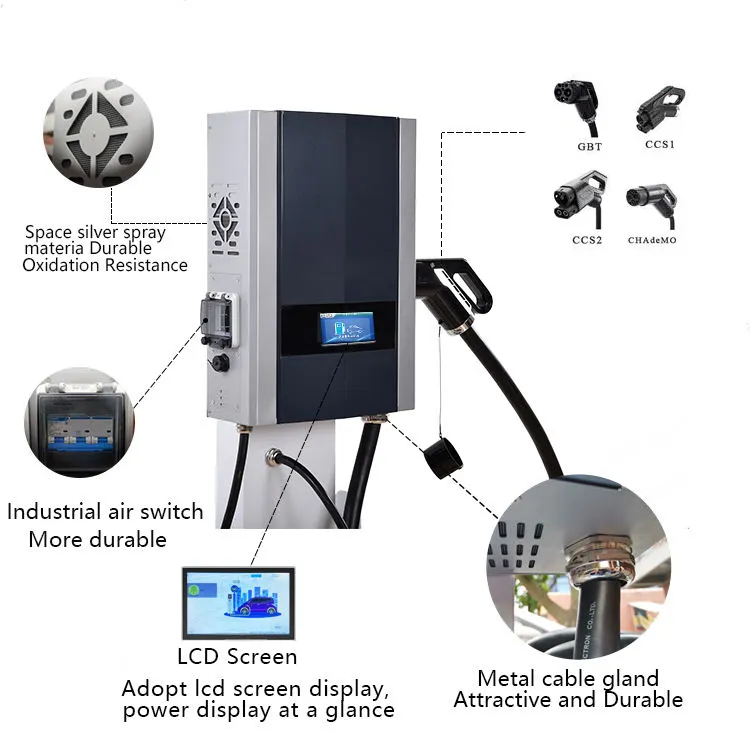

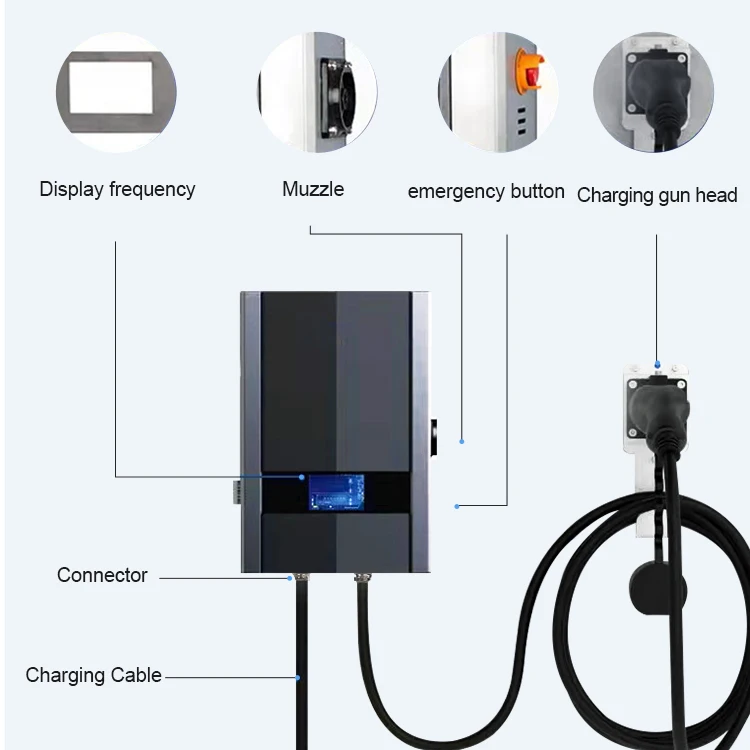

| Operating Interface | 4.3 inch Color LCD Display | ||||
| Auxiliary Source | 12V(24V Optional) | ||||

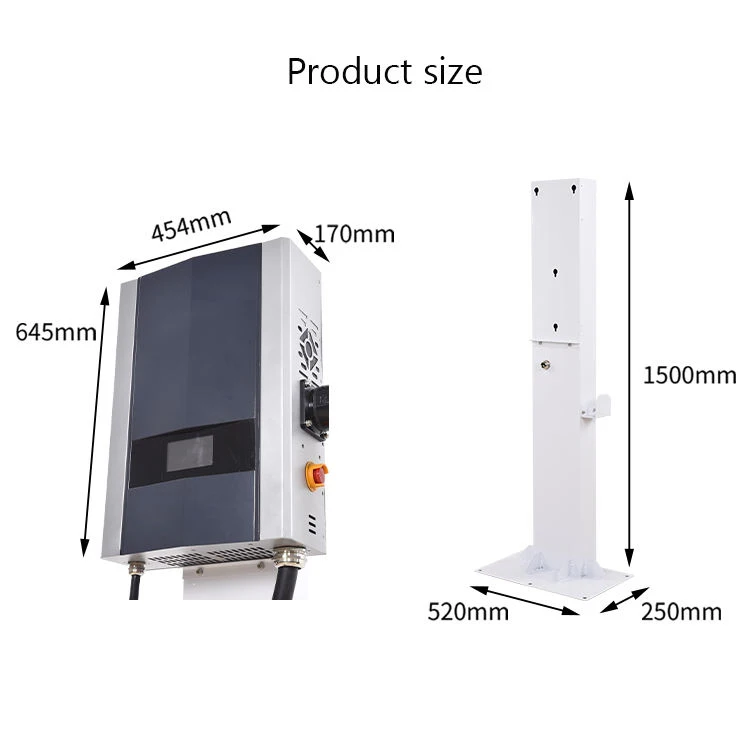

| Size | 545*380*170 | 545*380*170 | 645*454*170 | 721*475*232 | |
| Weight | 20kg | 30kg | 35kg | 45kg | 64kg |
| Operating Temperature | ﹣20℃-50 ℃（Derating Higher than 50 ℃） | ||||
| Altitude | 2000 Meter | ||||
| IP Level | IP55 | ||||
| Working Humidity | 5%-90% RH,No Condensation | ||||
| Input Cable Length | 0.6 Meter (Support Customized) | ||||
| Output Cable Length | 5 Meter (Support Customized) | ||||
| Applicable Standard | GBT20234/EN62196/EN61851-1/JEVSG105/CHADEMO | ||||
| Communication | GBT27930/CHADEMO2.0/DIN 70121,OCPP1.6 (JSON),ISO15118 | ||||
| Protocol | |||||
